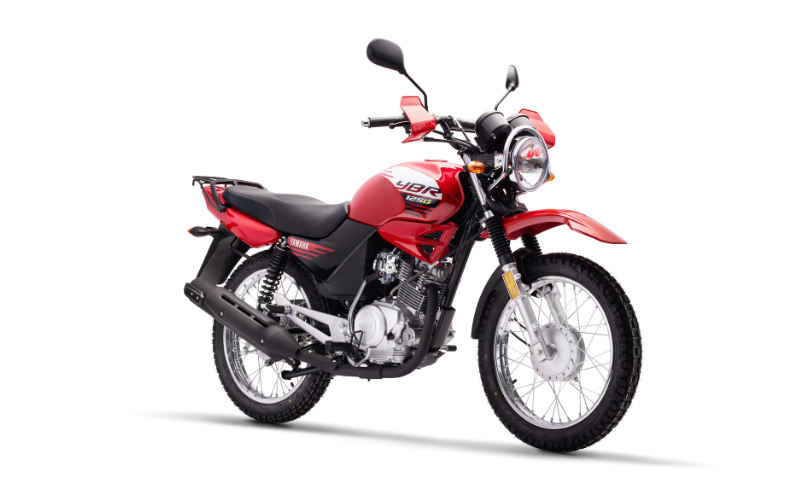

Ybr125g
The indisputable reference for professionals in the African continent. Sold at several tens of thousands units all over Africa, the YBR125G is the off-road motorbike by excellence.
Technical Specifications
Loading...
Models available
YBR125G
YBR125G YBR125G
Technical Specifications
 MOTOR |
|
| Bore x Stroke (mm) | 54,0*54,0 |
| Compression ratio | 10,0 : 1 |
| Cooling system | Air-cooled |
| Displacement (cc) | 123,6 |
| Engine type | Single cylinder, 4-stroke, SOHC, 2-valves |
| Fuel delivery | Carburetor |
| Ignition system | CDI |
| Lubrification system | Wet sump |
| Maximum power (hp / rpm) | 10 / 8000 |
| Maximum torque (N.m / rpm) | 9,5 / 6500 |
| Starter system | Kick and electric starter |
 CHASSIS |
|
| Frame | Diamond |
| Front brake | Drum |
| Front suspension system | Telescopic fork |
| Front tyre | 3,0-18 47P |
| Rear brake | Drum |
| Rear suspension system | Swingarm |
| Rear tyre | 3,0-18 47P |
| Wheels | Spoke |
 DIMENSIONS |
|
| Min ground clearance (mm) | 180 |
| Overall dim - L x w x h (mm) | 2020*745*1080 |
| Seat height (mm) | 790 |
| Wheelbase (mm) | 1300 |
 TRANSMISSION |
|
| Transmission system | 5-speed |
 WEIGHT/CAPACITIES |
|
| Dry weight (kg) | 113 |
| Fuel tank capacity (L) | 12 |
| Number of seats | 2 |

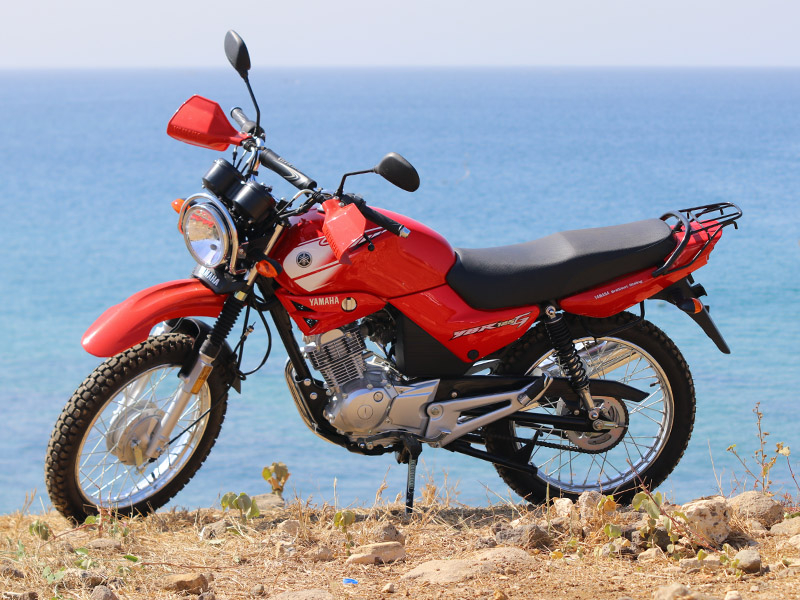

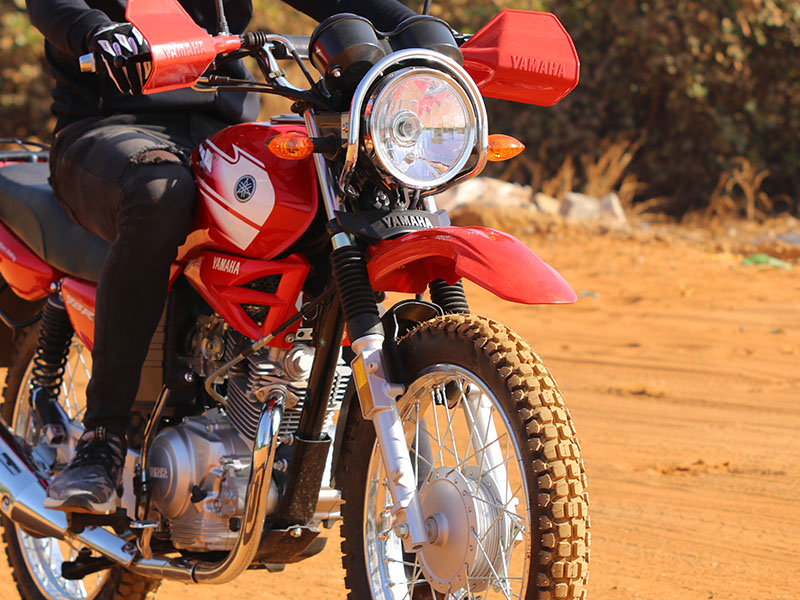

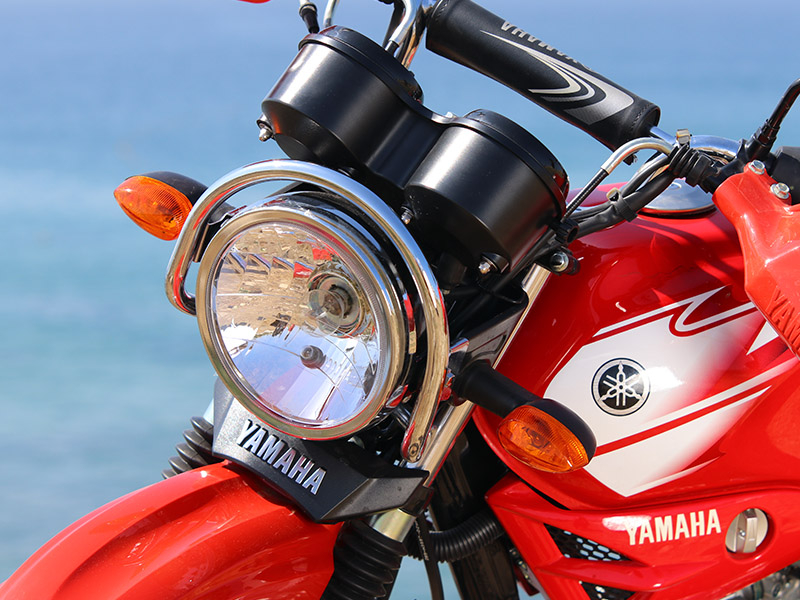

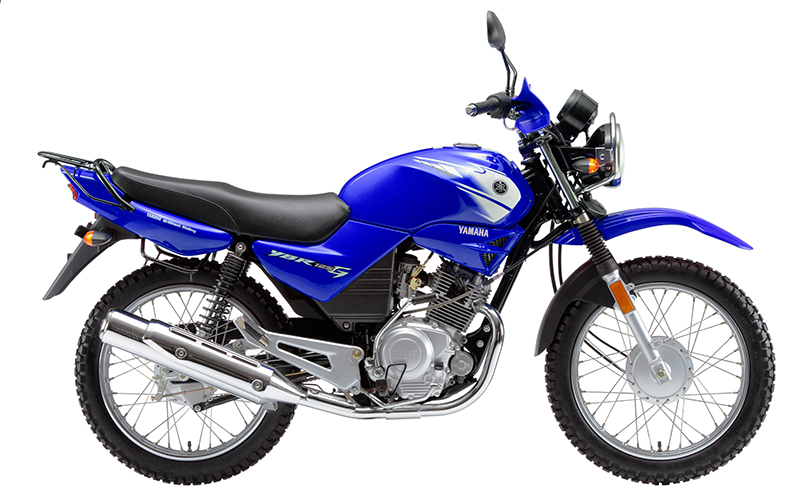

Gallery
Non-contractual images
